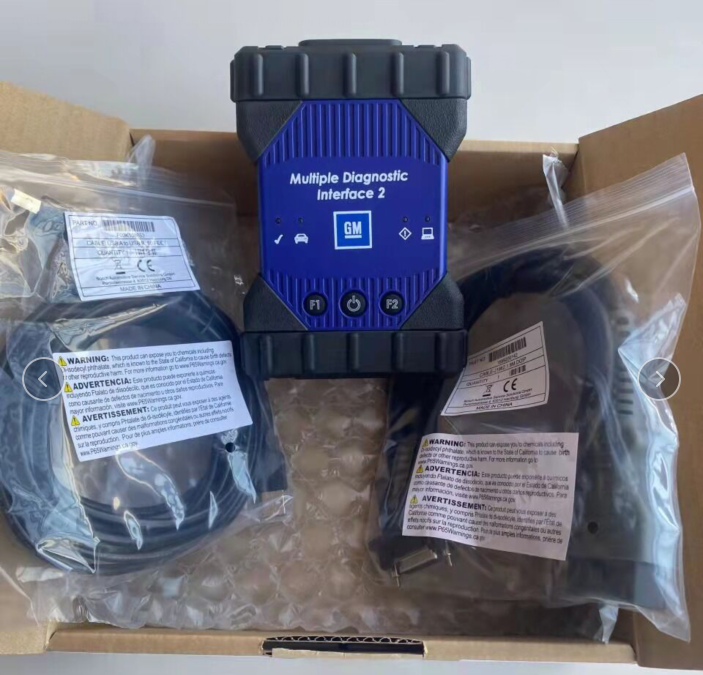

Original GM MDI 2 Diagnostic Tool Multiple Diagnostic Interface 2 With Wifi

Original GM MDI 2 Diagnostic Tool Multiple Diagnostic Interface 2 With Wifi

GM MDI 2 Overview:
1.Support Multi-Languages available: English, French, German, Italian. etc. Total 30 languages to choose.
2.Hardware: Original 1:1 support car till 2022
3.Software version: V2022.1 (offer link to download, technician remote to install after download complete)
4.Software Include: Tech2win, GDS2, RDS, DPS
5.Update Method: 1-Year Free Update Online(After 1 year, $80 to renew it)

GM MDI 2 Hardware & Software Feature:
1.Original 1:1 hardware
2.Support DoIP protocol
3.Support offline diagnosis and matching coding
4.Support online programming if the client has an online account (subscription)
NOTE: We don’t offer the online account.
5.Support all of the existing GM protocols: UART,Class 2, KWP2000,GMLAN (CAN)
6.Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available

GM MDI 2 Diagnostic Tool Functional Overview:
* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable/playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, airbag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass-thru ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software
* More dealer specific functions

GM MDI 2 Product description:
MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Can be Used for SPS programming on existing and future SGM vehicles
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
Used with TIS2Web, GM Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic
GM Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
Needed for Global A architecture vehicles
Supports Service Programming System (SPS)
Passthrough programming on past model and Global A vehicles
Supports PC-Based diagnostics with rollout of the Global Diagnostic System (GDS) application
Includes Flight Recorder Mode

Package List:
1pc x GM MDI 2
