How to use Jaguar and Land Rover DoIP Diagnostic Tool SDD Software ?

1.Run JLR SDD

2.Click SDD

3.Click[Auto VIN Read]

Reading VIN…

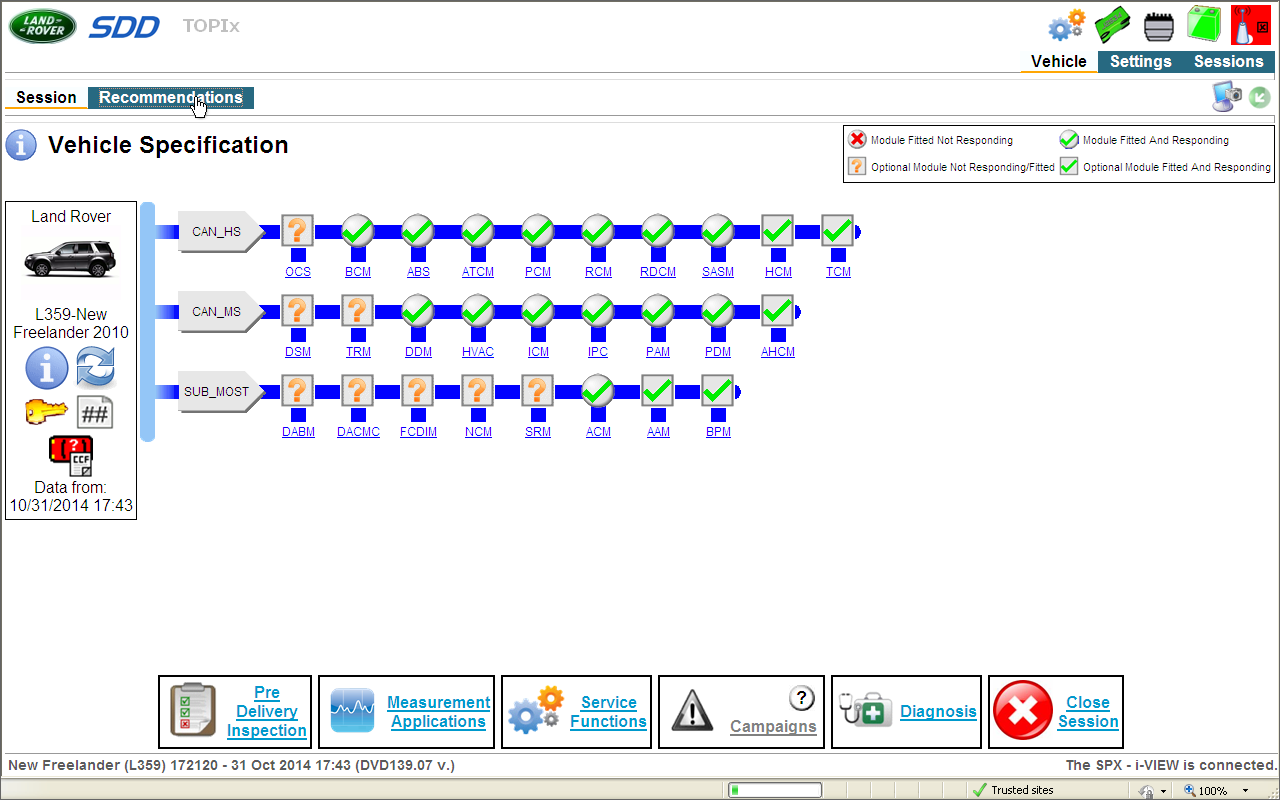

4.Click [Diagnosis]

5.Symptom Selection and click [Continue]

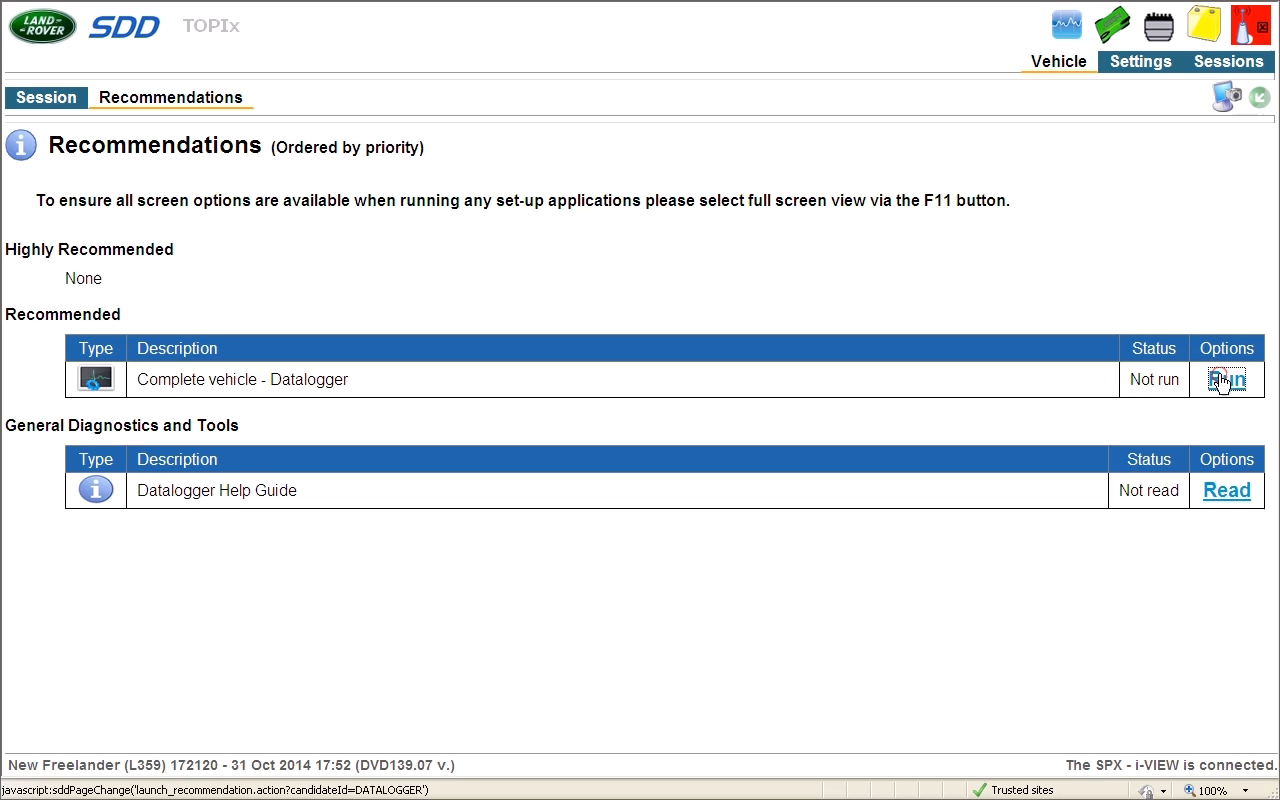

6.Click [Recommendations]

7.Click [Run]
Complete vehicle – Datalogger

8.Select signals

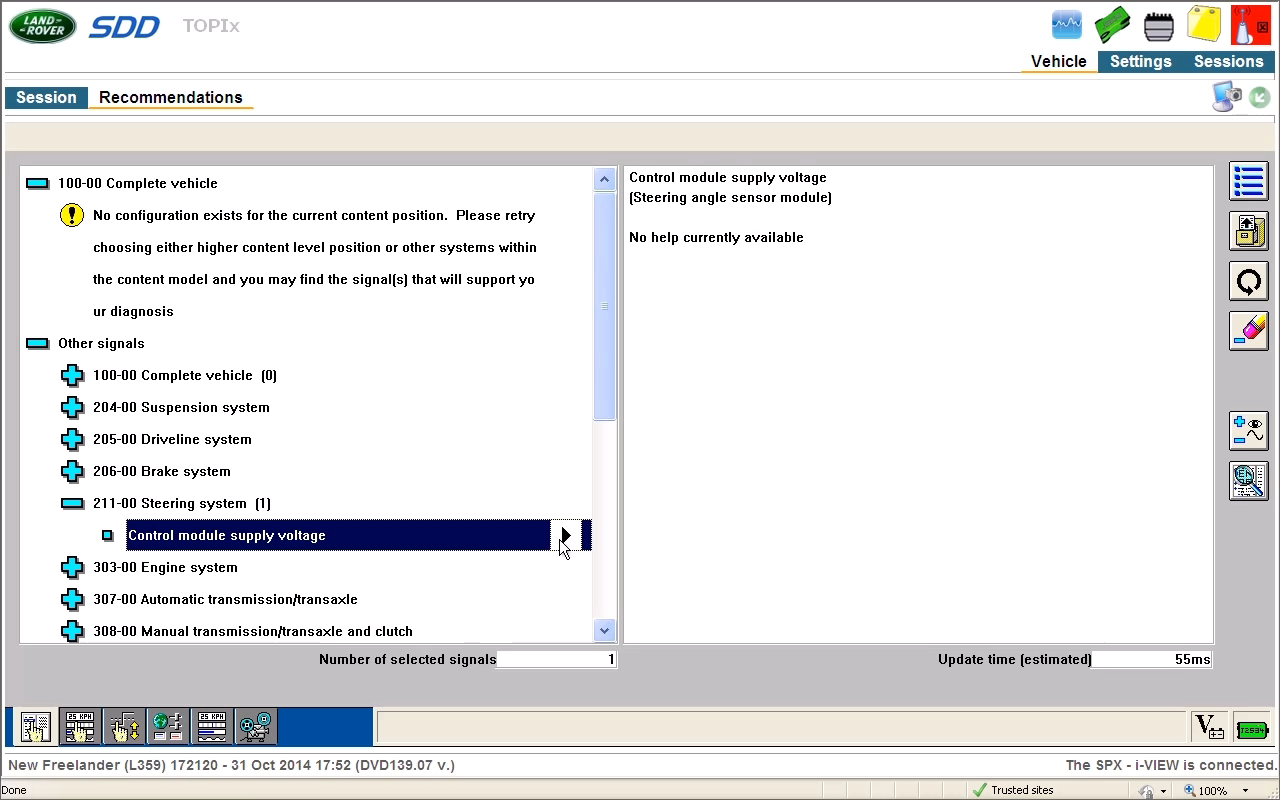

Select [Control module supply voltage]

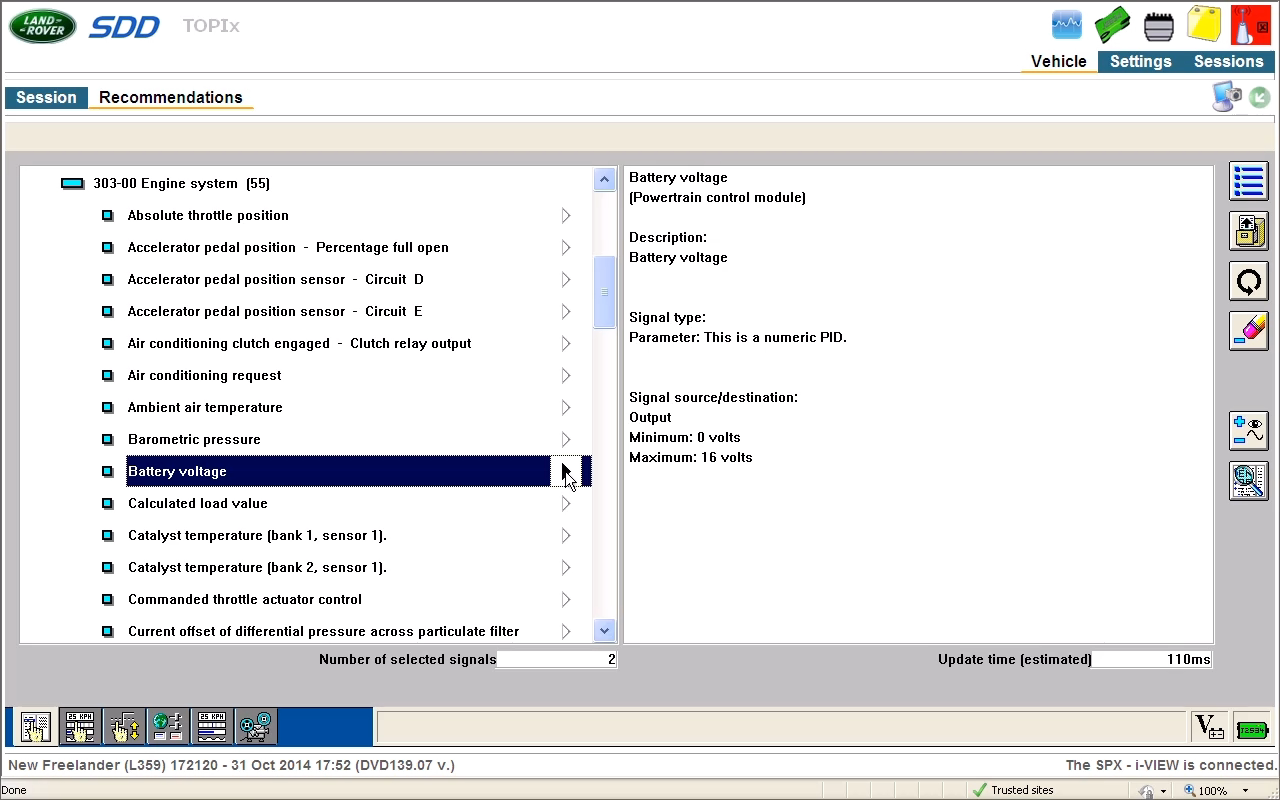

Select [Battery voltage]

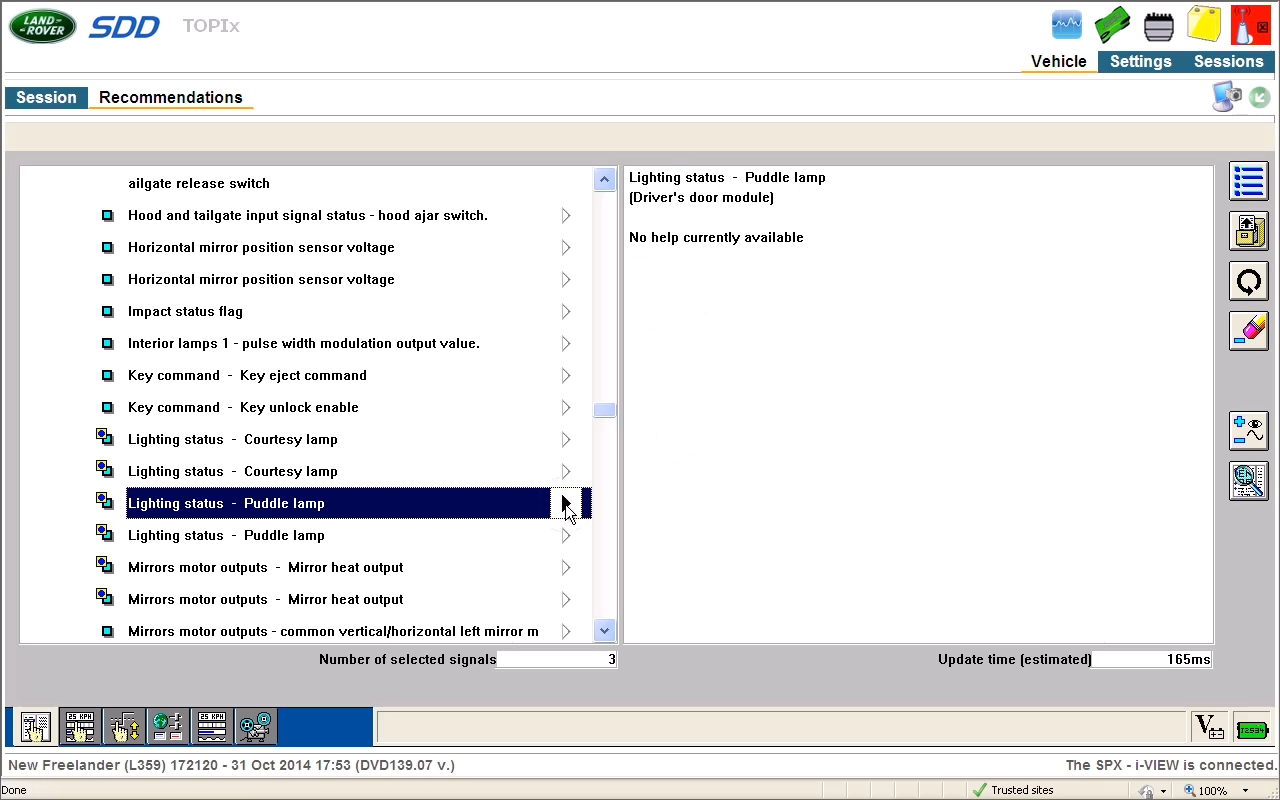

Select [Lighting status – Puddle lamp]

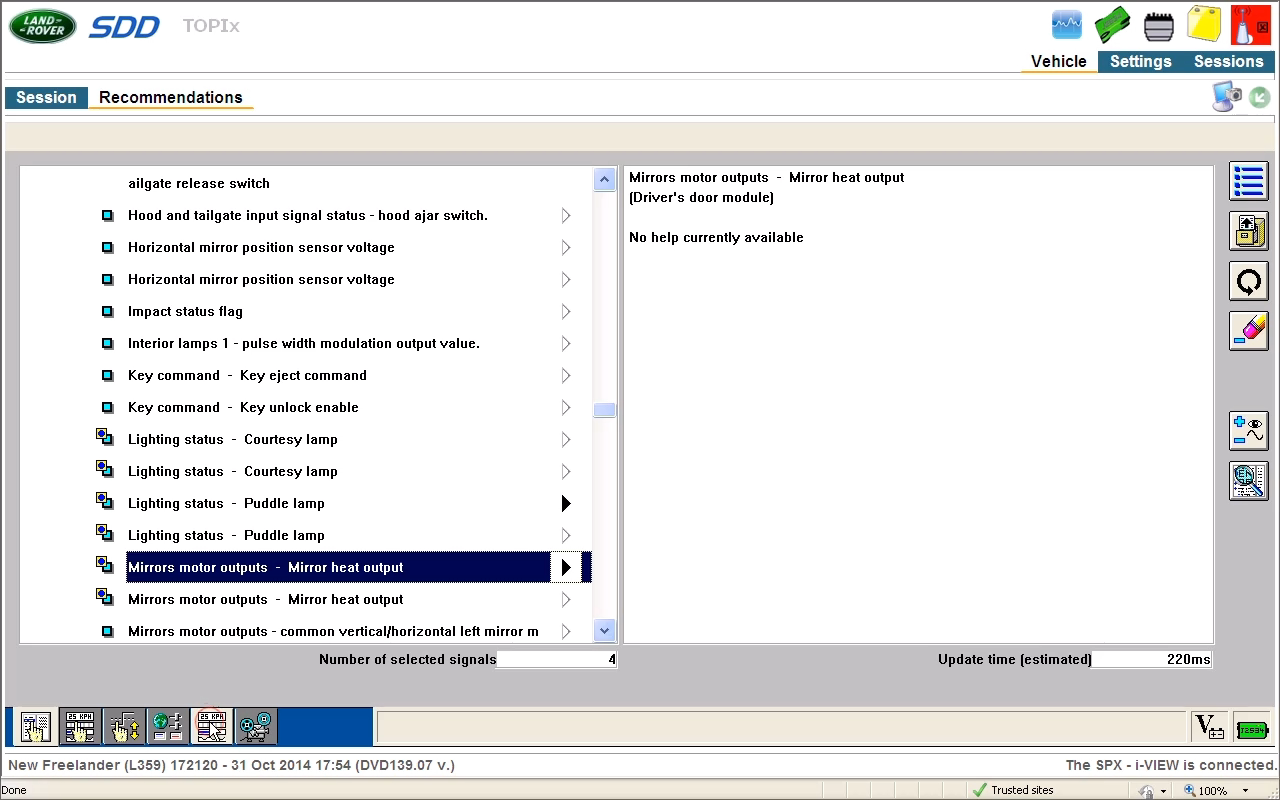

Select [Mirrors motor outputs – Mirror heat output]

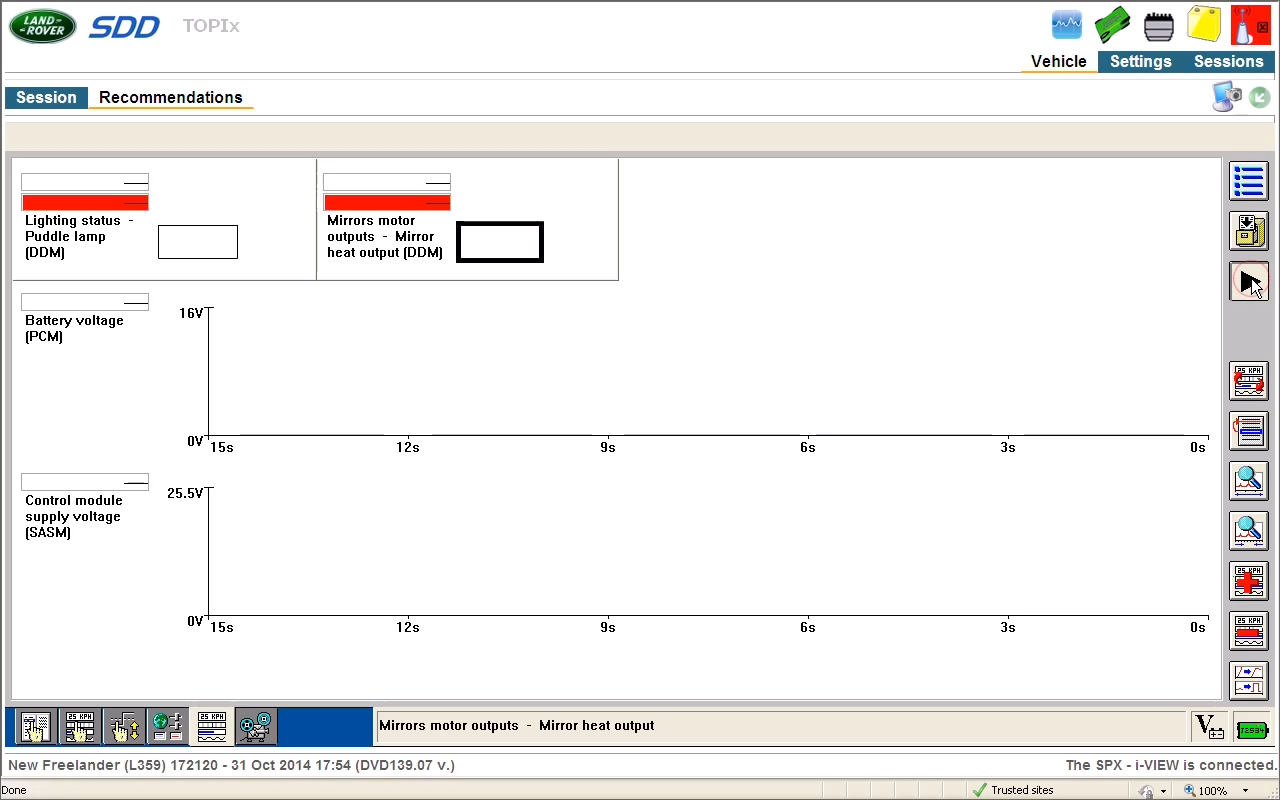

9.Click

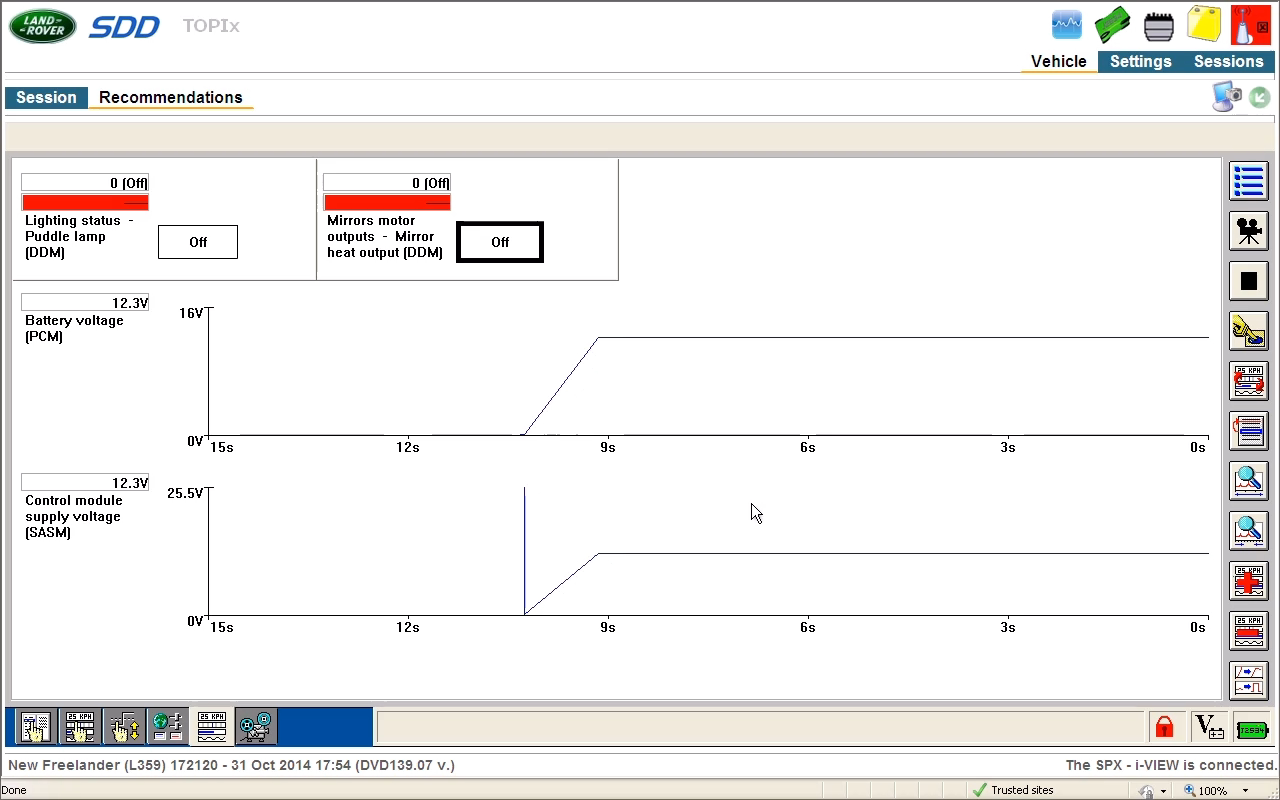

10.Click play

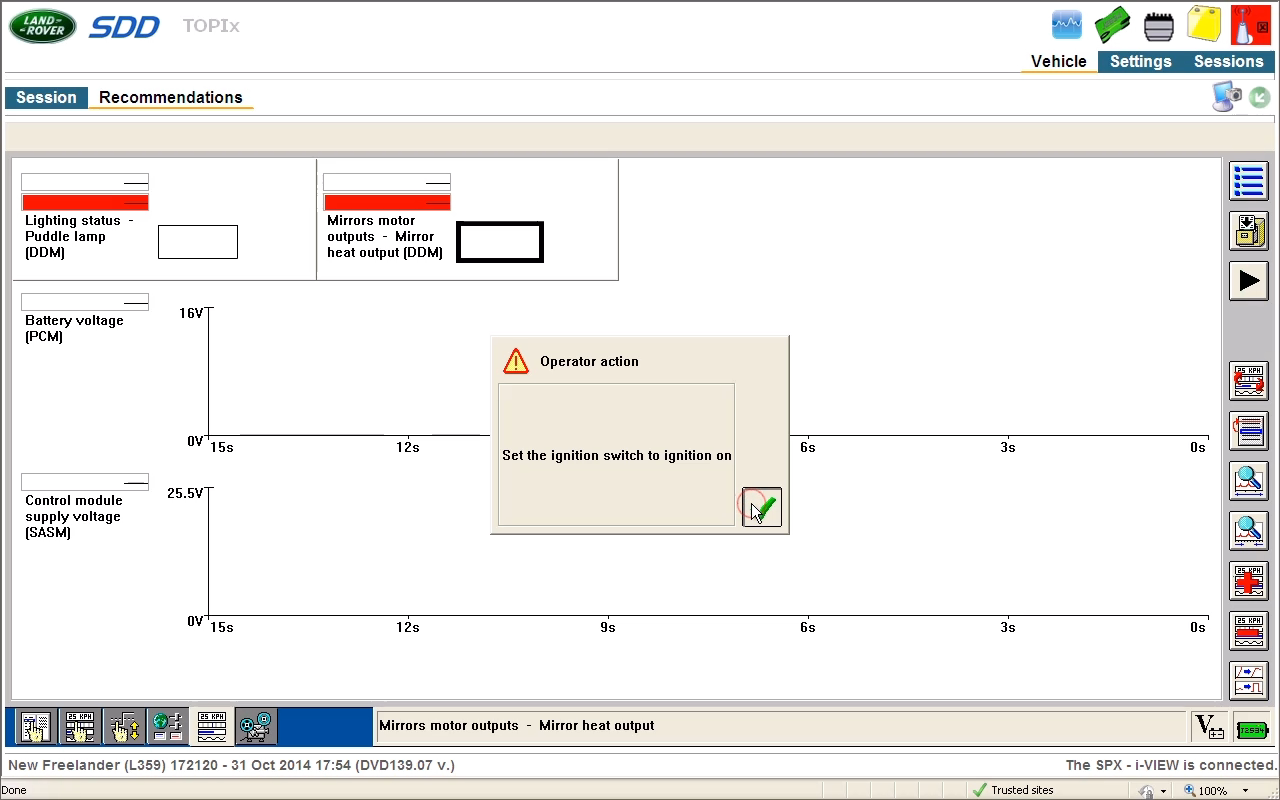

11.Set the ignition switch to ignition on. Press tick to continue

12.PCM and SASM

13.Click Select

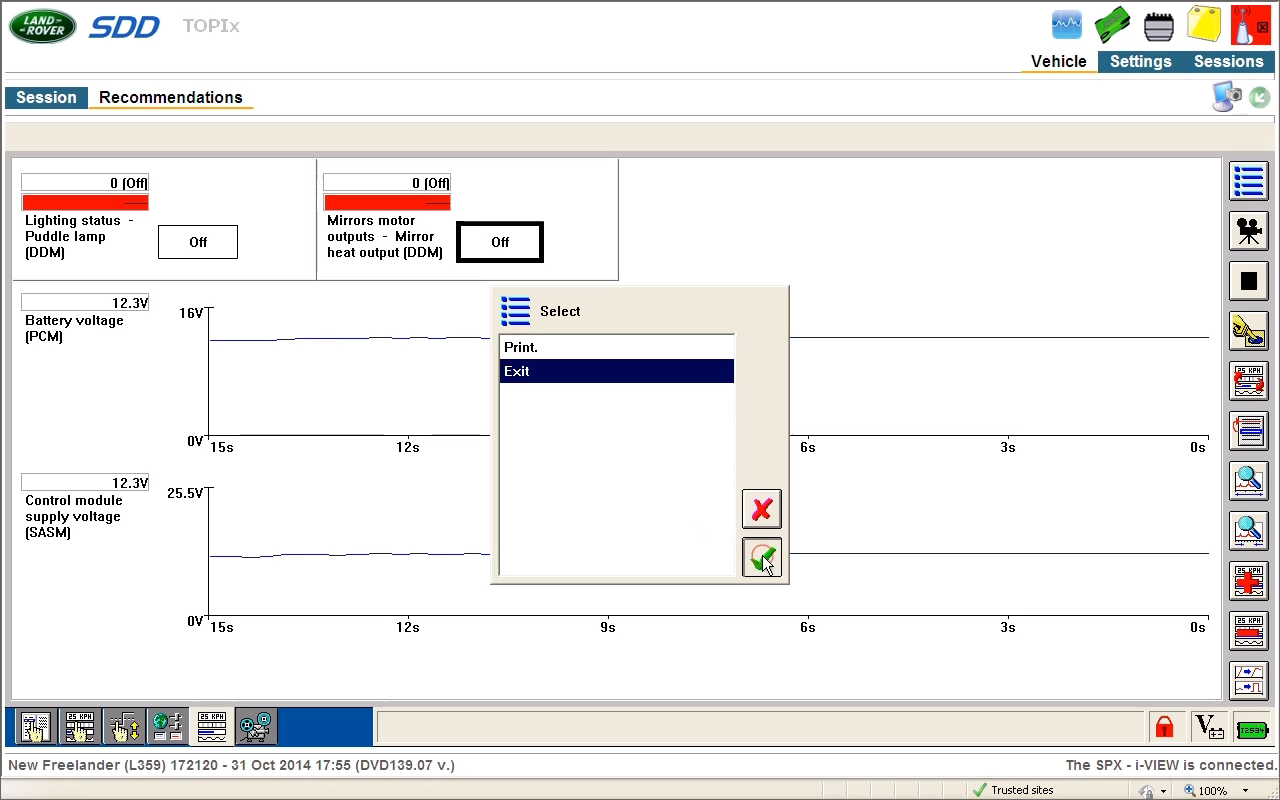

14.Select [Exit]. Press tick to exit
